    ATEX IECEx Explosion Proof Fluorescent Light Dimmable Led Tube Light T5 T8

    Ask Lasest Price
    Brand Name : CROWN EXTRA
    Model Number : BYS-Explosion Proof Fluorescent Light
    Certification : CE,RoHS,CCC,ATEX
    Price : USD58PCS
    Payment Terms : T/T, Western Union
    Supply Ability : 100000PCS PER MONTH
    Delivery Time : 5-7 WORK DAYS
    • Product Details
    • Company Profile

    ATEX IECEx Explosion Proof Fluorescent Light Dimmable Led Tube Light T5 T8


    ATEX IECEx Explosion Proof Fluorescent Light Dimmable T5 T8 Led Tube Light


    1. Explosion Proof Fluorescent Light with high quality with ATEX,CCC, EU,IEC, TUV, ROHS, ISO CE certificate.


    2. It used in Zone 1 Zone 2,Zone 21 and zone 22 dangerous area. Can withstand T5~T6 temperature.

    Flammable and explosive dust-intensive places such as flour and clothing factories
    Gas stations, oil refineries, power stations, shipping terminals, chemical plants and other explosive gas-intensive places


    Explosion Proof Fluorescent Light mounting ways:Ceiling; Chain; Embedded; Pendant; Clamp; Wall; Stanchion
    Platform fence type,Platform fiange type. Wall type

    Electrical Data
    Ex Marking
    Ex d e IIC T6 Gb/ DIP A21 TA
    Classification
    Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
    IP Degree
    IP66
    Corrosion Resistant
    WF2
    Rated Voltage
    110VAC; 220VAC/50~60HZ
    Conduit Entries
    G 3/4"
    Battery Back-up
    Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s
    Mounting Styles
    Pendant; Ceiling; Chain; Embedded; Wall; Stanchion

    Ordering Information
    Model No.BYS600BYS1200
    T8 Fluorescent Tube(1~3)*18W(1350Lm, 75lm/W)(1~3)*36W(2700Lm, 75lm/W)
    T5 Fluorescent Tube(1~3)*14W(1350Lm, 96lm/W)(1~3)*28W(2100Lm, 75lm/W)
    LED Tube(1~3)*8W(800Lm, 100lm/W)(1~3)*18W(1800Lm, 100lm/W)

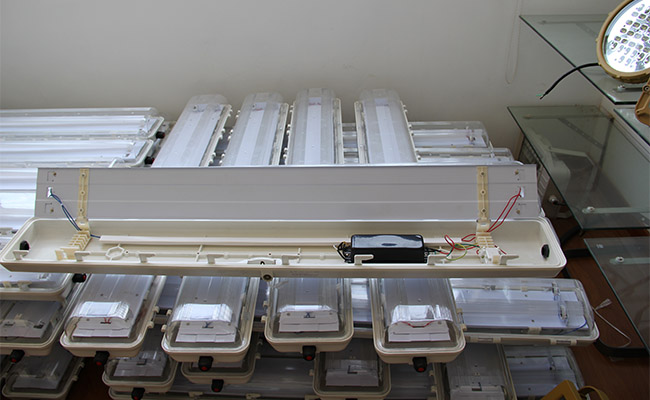

    Explosion Proof Fluorescent Light linear lamp (pole installation) shell is made of glass fiber reinforced polyester, and the transparent part is made of UV-resistant polycarbonate, which has good protection against various chemicals in factories or offshore platforms ability.

    High stability and safety of transparent parts are operated by interlocking device.

    The interrupt switch is operated by an interlock device. When the isolation switch is closed, the lid can be opened.

    It is equipped with independently certified explosion-proof power supply module and explosion-proof inverter module, with constant current output function and over-temperature protection function.

    The LED light source module uses the latest LED high-efficiency particles, with excellent luminous intensity and color rendering performance. Suitable for explosive gas and dust environment as general lighting or emergency lighting.
    Full plastic explosion-proof LED linear lamp accessories (pole-mounted) installation methods: platform fence type, platform flange type. Wall type
    The protection level reaches IP66.
    With an interlocking device, the transparent part and the shell cannot be energized until they are completely closed to ensure safe use.

    International IECEx certification, EU ATEX certification.

    1. Can I have a sample order for testing?
    A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
    2. How long is the order cycle?
    A: It takes 3-5 days for samples and 1-2 weeks for mass production (more than 100 sets).

    3. Do you have any MOQ restrictions?
    A: Can provide 1 sample for inspection.

    4. How do you ship the goods and how long will it take to arrive?
    Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air and sea transportation are also optional.

    5. How to process the order?
    Let us know your requirements or applications first.
    Secondly, we quote according to your request or our suggestion.
    Third, the customer confirms the samples and places a deposit for the formal order.
    Fourth, we arrange production.

    6. Do you provide product guarantee?
    A: Yes, we provide one-year replacement for our products.
