    IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

    Ask Lasest Price
    Brand Name : Crown Extra
    Model Number : BNG
    Certification : ATEX,CE,ROHS,CNEX,ISO9001
    Price : USD1-18per pc
    Payment Terms : T/T
    Supply Ability : 50000pcs/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

    IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings


    BNG Series

    IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

    Applications
    1.The exterior is made of 304 stainless steel, IP65 grade anti-corrosion engineering rubber and stainless steel wire weaving materials, which are waterproof, explosion-proof, anti-corrosion and dust-proof. The bushing is made of stainless steel or carbon steel.
    2.It can be bent arbitrarily, with strong tensile performance and easy installation
    3.Heighten and thicken stainless steel joints. High-strength protection
    4.The connection is deepened with threads, which will not fall off and will not slip easily.
    5.The stainless steel flexible tube adopts a precision braided shell to protect the cable from aging and water seepage.
    6.Can be used in hazardous locations of zone 0&1&2 and zone 20&21&22

    7.

    Degree of protection IP65 and the types of connectors are complete.
    Customized
    1.Rubber plastic, steel net and stainless steel net is optional
    2.The thread could be specially made upon request,such as NPT, G thread.
    3.The length of the flexible conduit can be specially made upon request.



    Technical Parameters
    Explosion-proof mark:Ex d IIC Gb DIP A20
    IP Degree:IP65
    Waterproof Degree:WF2
    The Bushings of the Flexible tubes can be choose inner Bushingsouter,Bushings, or threaded plugs
    Mark:

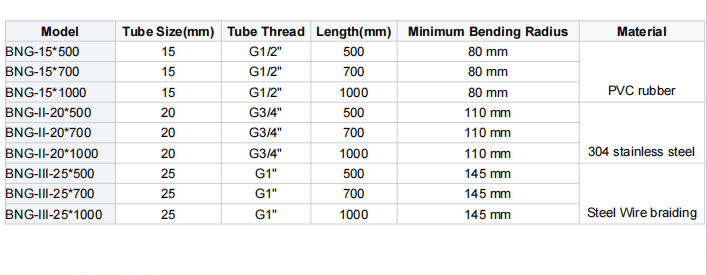

    The tube size can be replaced by 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 70mm, 80mm, 100mm etcThe tube thread can be replaced by G1/2", G3/4", G1" G1 1/4", G1 1/2", G2“ G2 1/2", G3" G4" etc
    The minimum bending radius can be replaced by 80mm, 110mm, 145mm, 180mm, 210mm, 250mm, 350mm, 400mm, 500mm etc

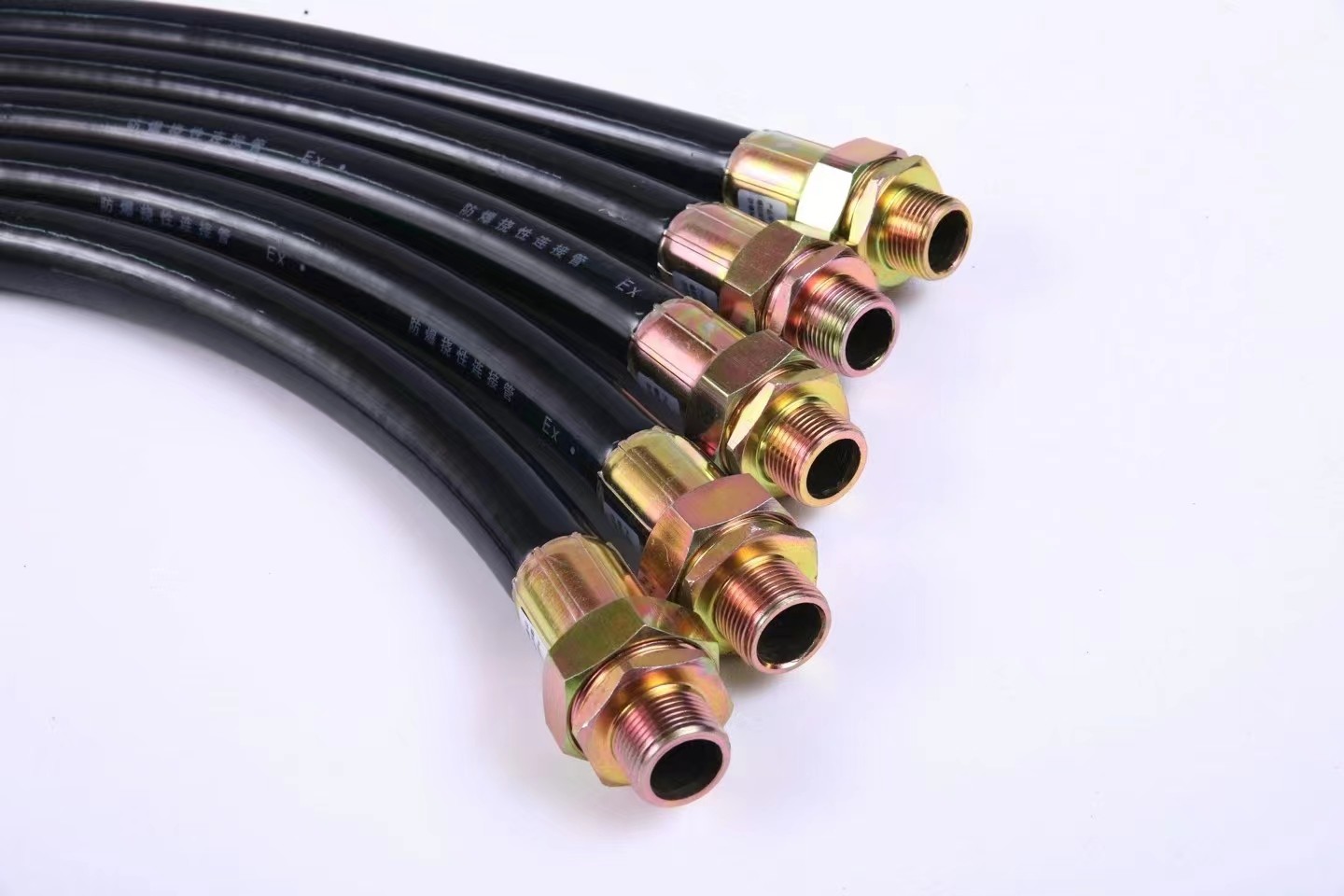

    Details Images
    1.Good toughness, easy to bend and not easy to break.
    2.Carbon steel joints, surface electroplating treatment, anti-corrosion; threaded connection, good airtightness, and anti-protection function.
    3.Various lengths, various models, and various connectors can be selected.
    4.Efficient waterproof performance, can also be installed and used outdoors.

    Installation Instructions:
    Before installation, check voltage, power and other parameters carefully and
    make installation preparations arrordingly to layout circuit.
    1. organize firstly supporting spare parts and accessories
    2. do shut off power before installation
    3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
    4. do power-on test to make sure the lamp can be lighted
    5. make sure the lamp is installed firmly, turn on the light finally
    Company information:
    Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
    The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
    Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
    energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
    petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
    fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
    FAQ:
    Q1. Can I have a sample order for explosion-proof led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2: What kind of payments do you accept?
    A:T/T, L/C, Western Union,, MoneyGram, etc..
    Q3:What is you main products?
    A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
    Q4: Do you offer guarantee for the products?
    A: Yes, we offer 3-5 years warranty to our products.
    Q5: What's the MOQ?
    A:MOQ is 1 set.
