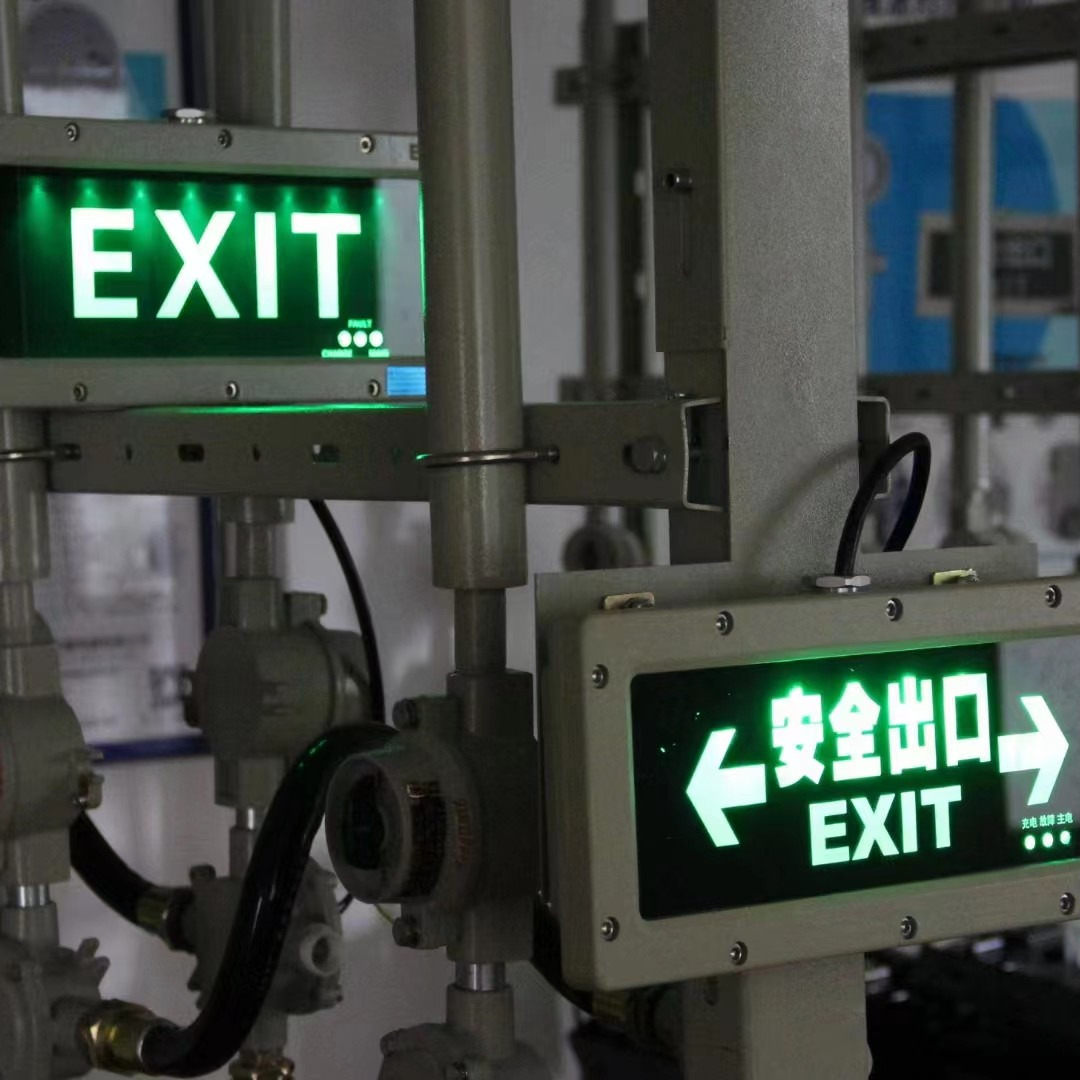

    3W 100lm/w waterproof IP65 explosion proof LED emergency warning light Exit Sign explosion-proof light

    Ask Lasest Price
    Brand Name : Crown Extra
    Model Number : BYY
    Certification : ATEX,CE,ROHS,CNEX,ISO9001
    Price : USD48-80per pc
    Payment Terms : T/T
    Supply Ability : 50000pcs/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    3W 100lm/w waterproof IP65 explosion proof LED emergency warning light Exit Sign explosion-proof light

    3W 100lm/w waterproof IP65 explosion proof LED emergency warning light Exit Sign explosion-proof light


    BYY Series

    3W 100lm/w waterproof IP65 explosion proof LED emergency warning light Exit Sign explosion-proof light


    Features:

    1.Die-cast aluminium body with baked epoxy powder coat finish for durability and corrosion resistance
    2. Toughened glass transparent cover with high light transmittance
    3. Ultra-bright LED light source, service life is up to 50,000 hours
    4. Designed with test buttons, convenient for regularly maintenance
    5. The light fitting is designed with a main power indicator, failure and charging indicator, to the using status
    6. Designed with test button




    Applications

    Explosive hazardous atmosphere Zone 1, 2 & Zone 21,22
    Widely used for safety exit indication and marking on various marine platforms, chemical tankers, LNG ships and dangerous cargo wharfs ect.
    Can reliably work in severe environment where is easily affected by moisture, vibration, or corrosion.


    Standard Materials
    Housing:Die-casting aluminum
    Exterior:Stainless steel
    Globe:Tempered glass
    Gasket:Silicon rubber


    Certifications
    ATEX
    CNEX
    CE
    RoHS
    ISO9001


    Electrical Data
    Ex MarkingEx e IIC T6/ Ex tD A21 T80
    ApplicationZone 1, 2 & Zone 21, 22
    IP DegreeIP65
    Corrosion ResistantWF1
    Wattage1.5-3W
    EntriesG 3/4" Conduit Entry, Suitable for Φ10mm-Φ14mm cable
    Input VoltageDC 110V;AC220V 50Hz
    Red LetteringOptiional
    Back-up Battery>120 min
    Weight3.25kg
    Mounting StylesPendant; Ceiling; wall





    Installation Instructions:
    Before installation, check voltage, power and other parameters carefully and
    make installation preparations arrordingly to layout circuit.
    1. organize firstly supporting spare parts and accessories
    2. do shut off power before installation
    3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
    4. do power-on test to make sure the lamp can be lighted
    5. make sure the lamp is installed firmly, turn on the light finally
    Company information:
    Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
    The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
    Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
    energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
    petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
    fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
    FAQ:
    Q1. Can I have a sample order for explosion-proof led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2: What kind of payments do you accept?
    A:T/T, L/C, Western Union,, MoneyGram, etc..
    Q3:What is you main products?
    A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
    Q4: Do you offer guarantee for the products?
    A: Yes, we offer 3-5 years warranty to our products.
    Q5: What's the MOQ?
    A:MOQ is 1 set.
