Stainless steel exposed fasteners 1200mm 50/60Hz Ex-proof
Fluorescent Light Fixture L700*W700*H90 for Gas Pipelines
Product Description:
Our Explosion Proof Fluorescent Light is WF2 corrosion resistant,
ensuring durability in harsh conditions. It can also accommodate
cable outer diameters ranging from Ф6mm to Ф10mm.
The Ex Mark of our Explosion Proof Fluorescent Light is Ex Db Eb
IIC T6 Gb/Ex Tb IIIC T80℃ Db, which means it has been certified for
use in hazardous locations. This certification guarantees that the
product has undergone rigorous testing and meets the highest safety
standards.

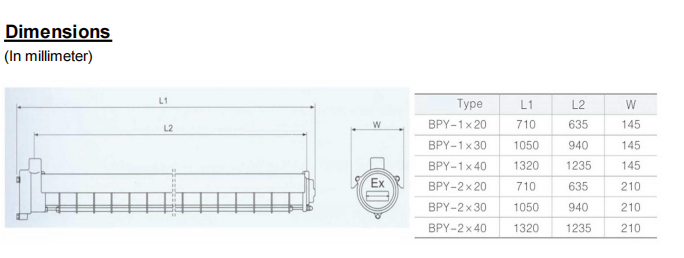

The size of our Explosion Proof Fluorescent Light is L700*W700*H90,
making it a perfect fit for a variety of industrial settings.
Additionally, this product comes with a packing list measuring
1450*250*170mm and weighing 11kg.
Invest in our Blast Resistant Fluorescent Light Bulb and ensure the
safety of your workers and equipment. With its rugged design and
high-quality materials, this Explosion Resistant Fluorescent Light
Fixture is the perfect solution for hazardous environments.
Features:
- Product Name: Explosion Proof Fluorescent Light
- Ex Mark: Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db
- Packing List: 1450*250*170mm, 11kg
- Zone: Zone 1&2
- Corrosion Resistant: WF2
- Protection Class Level: Safety Class Ⅱ
Looking for a reliable Explosion-Proof Fluorescent Fixture? Our
Explosion Resistant Fluorescent Light Fixture is designed to
withstand harsh environments and is perfect for use in Zone 1&2
areas. Featuring a WF2 corrosion-resistant design and a high level
of protection with Safety Class Ⅱ, this product is built to last.
With an Ex Mark of Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db, you can
be sure that this Explosion Proof Fluorescent Light will provide
reliable lighting even in the toughest conditions. The product
comes with a 1450*250*170mm packing list and weighs 11kg.
Technical Parameters:
| Technical Parameter | Value |
|---|
| Product Name | Fluorescent Light with Explosion Protection |
| Tube Number | 1 Tube, 2 Tubes And 3 Tubes |
| Power | 9/18/27/54w |
| Power Factor | 0.98 |
| Protection Class Level | Safety Class Ⅱ |
| Working Life Time | 50000H |
| Lamp Luminous Efficiency | 100lm/w |
| Corrosion Resistant | WF2 |
| Frequency | 50/60Hz |
| Mounting | Ceiling, Wall, Flangle, Pendant |
| Cable Outer Diameter | Ф6mm—Ф10mm |
| Product Type | Explosion Resistant Fluorescent Light Fixture |
| Ex Marking | Ex d e IIC T6 Gb/ DIP A21 TA |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
Zone 1, 2 & Zone 21, 22 |
| IP Degree | IP66 |
| Corrosion Resistant | WF1 |
| Input Voltage | 90-305VAC/50~60HZ or 24V DC |
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting
time:0.3s |
| Conduit Entries | G 3/4" |
| Terminal | ≤2.5mm2 |

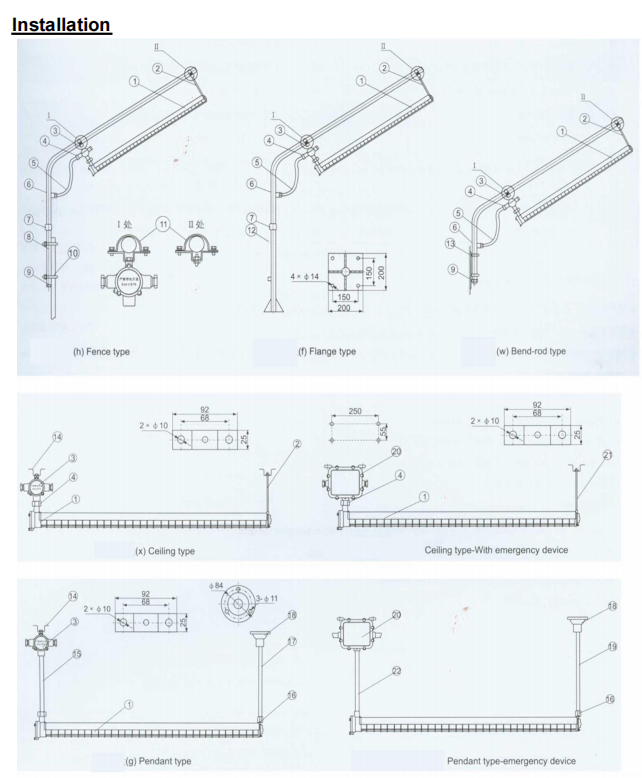

| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
Applications:
The Crown Extra BYS is available in 9/18/27/54w power options and
can accommodate cable specifications between 9-14mm. This makes the
product versatile enough to be used in various applications such as
oil and gas platforms, chemical plants, and other potentially
explosive environments.
The BYS model is designed with a 120-140℃ beam angle, which
provides optimal illumination and visibility even in low light
conditions. The fluorescent tube is also blast-proof, providing
added safety to users in case of an explosion.
The Crown Extra BYS can be mounted on the ceiling, wall, flangle,
or pendant, making it easy to install in any desired location. The
product also comes with a minimum order quantity of 1SET and
packaging details of 1SET/CTN, with a delivery time of 5-10 days.
With a price range of $50.00-$80.00, the BYS model is an affordable
and effective solution for explosion-proof lighting. The payment
terms are 50%+50%, ensuring that customers can purchase the product
with ease. The product has a supply ability of 5000SET/month,
making it readily available for large-scale orders.
Overall, the Crown Extra BYS Fluorescent Light with Explosion
Protection is the perfect lighting solution for hazardous
environments. Its blast-proof fluorescent tube and versatile
mounting options make it a reliable choice for users in a wide
variety of applications.
Support and Services:
Our Explosion Proof Fluorescent Light product comes with
comprehensive technical support and services to ensure optimal
performance and safety. Our team of experts is available to assist
with installation, troubleshooting, and maintenance to prolong the
lifespan of the product and prevent any potential hazards.
We offer training and education on the proper use and handling of
the product to ensure that our customers are knowledgeable and
equipped to handle any situations that may arise. We also provide
repair and replacement services to minimize downtime and maximize
efficiency.
Our goal is to provide reliable and efficient products and services
that meet the unique needs of our customers in hazardous
environments. Contact us for more information on our technical
support and services.
Packing and Shipping:
Product Packaging:
- Explosion Proof Fluorescent Light fixture
- Mounting brackets and hardware
- User manual
Shipping Information:
- Shipping weight: 10 lbs
- Shipping dimensions: 24 in x 8 in x 6 in
- Shipping carrier: FedEx
- Estimated delivery time: 3-5 business days
