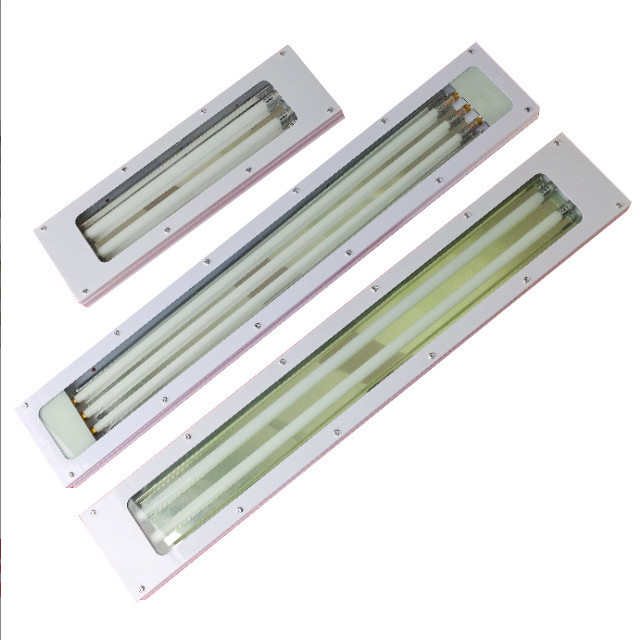

ATEX 50000H LED Explosion proof fluorescent Light 0.6M 1.2M 100lm/w
explosion proof lighting fixture
BHY Series
Features:
1. SMC mold pressure shell, high strength, impact resistance,
corrossion proof. Lampshade is formed by polycarbonate injection
molding, high transmittance, strong ability to withstand shocks.
2. Lamp is adopts curve sealed structure, high waterproof and dust
proof class.
3. Lightweight and slim line construction
4. The emergency device can be equipped at the request of users,
when the emergy power supply breaks, the fluorescent with emergency
unit can switch to emergency lighting state automatically
Applications
A wide range of hazardous areas where ignitable vapors, dust,
moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no
warm up time required
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
Standard Materials
| Housing: | Steel plate, Stainless steel optional |
| Exterior: | Stainless steel |
| Globe: | Polycarbonate, anti-glare |
| Gasket: | Silicon rubber |
| Certifications | ATEX CNEX CE RoHS ISO9001 |
Electrical Data
| Ex Marking | Ex d e IIC T6 |
| Classification | Class I, Division 1 and 2,Group A,B,C,D; ZONE1 ZONE21 AND 22 |
| IP Degree | IP66 |
| Corrosion Resistant | WF2 |
| Input Voltage | 220VAC, 50/60 Hz |
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting
time:0.3s |
| Power Factor | 0.98 |
| Conduit Entries | G 3/4" |

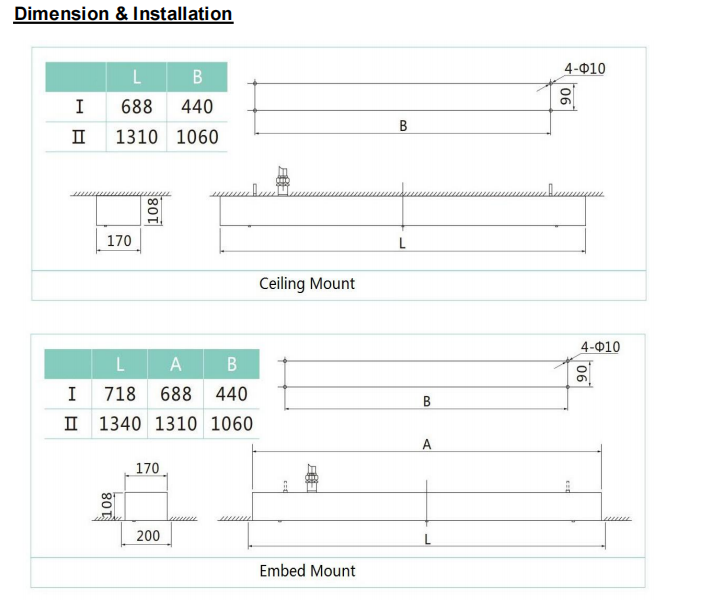

| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
Ordering Information
| Model No. | BHY | BHY-Tri tube |
| T8 Fluorescent tube | 2*40W | 3*40W |
| T5 Fluorescent tube | 2*28W | 3*28W |
| LED tube | 2*18W | 3*18W |
Installation Instructions:
Before installation, check voltage, power and other parameters
carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is
installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light
finally
